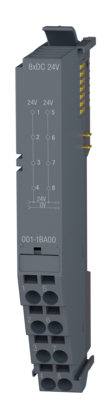

001-1BA00 - SLIO_CM001_Potential_distribution- Module_8xDC24V
Système de contrôle et d'E/S intelligent
Vue d'ensemble
La modularité et la taille réduite des automates VIPA SLIO de Yaskawa rendront la conception de vos machines et systèmes automatisés plus simple et plus économique. Il s'agit de l'offre d'automates et d'entrées sorties décentralisées la plus rapide et polyvalente disponible sur le marché.
Détails techniques
- Alimentation électrique
- x Non
- Input Voltage
- x Non
- Current Consumption
- x Non
- Max. current drain at backplane bus
- x Non
- Max. current drain load supply
- x Non
- Number of inputs (digital)
- x Non
- Rated load voltage (digital)
- x Non
- Current consumption from load voltage L+ (without load)
- x Non
- Signal logic input (digital)
- x Non
- Input characteristic curve (digital)
- x Non
- Initial data size (digital)
- x Non
- Number of outputs (digital)
- x Non
- Rated load voltage (digital output)
- x Non
- Current consumption from load voltage L+ (without load)
- x Non
- Signal logic output (digital)
- x Non
- Output data size (digital)
- x Non
- Number of inputs (analog)
- x Non
- Rated load voltage (analog)
- x Non
- Current consumption from load voltage L+ (without load)
- x Non
- Voltage inputs (analog)
- x Non
- Current inputs (analog)
- x Non
- Resolution in bit
- x Non
- Measurement principle
- x Non
- Basic conversion time
- x Non
- Initial data size
- x Non
- Number of outputs (analog)
- x Non
- Output voltage ranges
- x Non
- Output current ranges
- x Non
- Resolution in bit (analog)
- x Non
- Conversion time (analog)
- x Non
- Output data size (analog)
- x Non
- Number of counters
- x Non
- Counter width
- x Non
- Maximum input frequency
- x Non
- Maximum count frequency
- x Non
- Maximum count frequency
- x Non
- Maximum count frequency
- x Non
- Maximum count frequency
- x Non
- Number of channels
- x Non
- Input voltage (rated value)
- x Non
- Power stage
- x Non
- PWM frequency
- x Non
- Type of encoder
- x Non
- Encoder frequency
- x Non
- Encoder resolution (internal)
- x Non
- Control type
- x Non
- Terminal voltage max.
- 30 V
- Terminal current max.
- 10 A
- Total current per module, max.
- 10 A
- Number of clamps
- 2x4
- Binding of potential
- x Non
- Point-to-point protocol
- x Non
- Encoder Supply: Number of outputs (L+n)
- x Non
- Rated output current
- x Non
- Port mode
- x Non
- Load memory, integrated
- x Non
- Work memory, integrated
- x Non
- Work memory, maximal
- x Non
- Memory card slot
- x Non
- Racks, max.
- x Non
- Modules per rack, max.
- x Non
- Bus de terrain
- x Non
- Connector
- x Non
- Topology
- x Non
- Transmission speed, max.
- x Non
- Address range inputs, max.
- x Non
- Address range outputs, max.
- x Non
- Material
- PPE / PPE GF10
- Assemblage
- Profile rail 35 mm
- Width
- 12.9 mm
- Height
- 109 mm
- Depth
- 52.5 mm
- Net weight
- 46 g
- Gross weight
- 60 g
- Certifications
- UL certification, UKCA certification, ChinaRoHS certification
- Safety protocol
- x Non
- Safety requirements
- x Non
- Circuit monitoring
- x Non
- Max. operating temperature
- 60 °C
