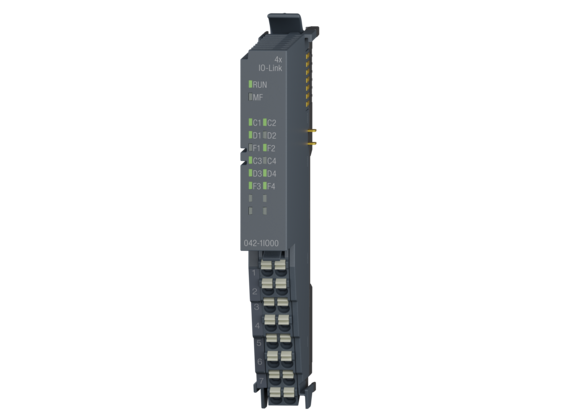

CP 042 - IO-Link Maître - 042-1IO00

• Alimentation électrique
• x Non

• Input Voltage
• x Non

• Current Consumption
• x Non

• Max. current drain at backplane bus
• x Non

• Max. current drain load supply
• x Non

• Current consumption from backplane bus
• 32 mA

• Current consumption from load voltage L+ (without load)
• 17.7 mA

• Power Loss
• 1.2 W

• Number of inputs (digital)
• x Non

• Rated load voltage (digital)
• x Non

• Current consumption from load voltage L+ (without load)
• x Non

• Signal logic input (digital)
• x Non

• Input characteristic curve (digital)
• x Non

• Initial data size (digital)
• x Non

• Number of outputs (digital)
• x Non

• Rated load voltage (digital output)
• x Non

• Current consumption from load voltage L+ (without load)
• x Non

• Signal logic output (digital)
• x Non

• Output data size (digital)
• x Non

• Number of inputs (analog)
• x Non

• Rated load voltage (analog)
• x Non

• Current consumption from load voltage L+ (without load)
• x Non

• Voltage inputs (analog)
• x Non

• Current inputs (analog)
• x Non

• Resolution in bit
• x Non

• Measurement principle
• x Non

• Basic conversion time
• x Non

• Initial data size
• x Non

• Number of outputs (analog)
• x Non

• Output voltage ranges
• x Non

• Output current ranges
• x Non

• Resolution in bit (analog)
• x Non

• Conversion time (analog)
• x Non

• Output data size (analog)
• x Non

• Number of counters
• x Non

• Counter width
• x Non

• Maximum input frequency
• x Non

• Maximum count frequency
• x Non

• Maximum count frequency
• x Non

• Maximum count frequency
• x Non

• Maximum count frequency
• x Non

• Number of channels
• x Non

• Input voltage (rated value)
• x Non

• Power stage
• x Non

• PWM frequency
• x Non

• Type of encoder
• x Non

• Encoder frequency
• x Non

• Encoder resolution (internal)
• x Non

• Control type
• x Non

• Terminal voltage max.
• x Non

• Terminal current max.
• x Non

• Total current per module, max.
• x Non

• Number of clamps
• x Non

• Binding of potential
• x Non

• Point-to-point protocol
• x Non

• Encoder Supply: Number of outputs (L+n)
• 4

• Rated output current
• 500 mA

• Port mode
• Deactivated (default), IO-Link mode (autostart), IO-Link mode (manual), SIO mode DI (digital input), SIO mode DO (digital output)

• Load memory, integrated
• x Non

• Work memory, integrated
• x Non

• Work memory, maximal
• x Non

• Memory card slot
• x Non

• Racks, max.
• x Non

• Modules per rack, max.
• x Non

• Bus de terrain
• x Non

• Connector
• x Non

• Topology
• x Non

• Transmission speed, max.
• x Non

• Address range inputs, max.
• x Non

• Address range outputs, max.
• x Non

• Material
• PPE / PPE GF10

• Assemblage
• Profile rail 35 mm

• Width
• 12.9 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 52 g

• Gross weight
• 67 g

• Certifications
• UKCA certification, ChinaRoHS certification

• Safety protocol
• x Non

• Safety requirements
• x Non

• Circuit monitoring
• x Non

• Max. operating temperature
• 60 °C
