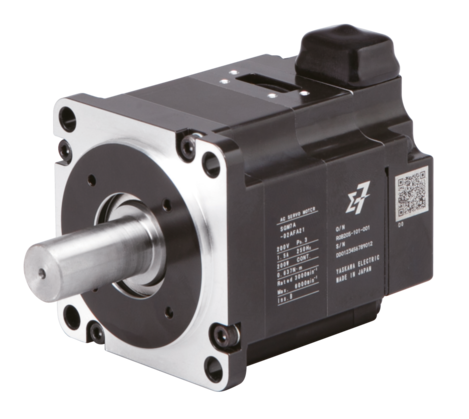

SGM7A 200 V
SGM7A-20A7A6C
Le plein de performances
Yaskawa France Produits Motion Control SGM7A 200 V SGM7A-20A7A6C
Vue d'ensemble
Le SGM7A, le plus incontournable et polyvalent de la gamme Sigma-7, est disponible dans une large gamme de tailles et couvre le spectre des capacités de faible à moyenne puissance.
- Codeur 24 bits à haute résolution déjà installé
- Efficacité élevée, faible émission de chaleur
- Encombrement réduit de 20 %
- Bride compatible avec Sigma-5
- Faible inertie, vitesse élevée
Détails techniques
- Alimentation électrique
- 200 V
- Sortie nominale
- 2 kW
- Type d'arbre
- Avec rainure de clavetage et clavette
- Résolution Codeur
- 24 bit
- Type Codeur
- Absolu
- Options
- Avec frein de parking (24 Vdc)
- Hauteur
- 152 mm
- Largeur
- 100 mm
- Profondeur
- 259 mm
- Poids
- 6.8 kg
- Allowable Load Moment of Inertia
- 10 Times
- Couple nominal
- 6.36 Nm
- Instantaneous maximum torque
- 19.1 Nm
- Rated Motor Speed
- 3000 1/min
- Maximum motor speed
- 6000 1/min
- Motor Moment of Inertia
- 2.72 x10⁻⁴ kg·m²
- Flange Dimension (LC)
- 100 mm
- Flange Diameter (LA)
- 115 mm
- Shaft End Diameter (S)
- 24 mm
- Shaft End Length (Q)
- 40 mm
