PHD Gripper Series Flexion (FG)

Vue d'ensemble

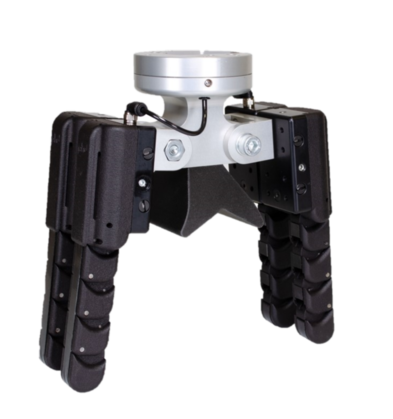

PHD FLEXION is an innovation in gripping technology inspired by the ultimate gripper: the human hand. The act of bending a finger – anatomically defined as flexion -- gives the human hand a vast range of ability and adaptability. When actuated, FLEXION’s multiple joints perform as a human finger to conform and encapsulate a part or grip it by the fingertips. Adjustment of the operating pressure allows for a wide working range of usable force, providing industrial strength for demanding applications or a delicate touch for soft and sensitive product handling. Go to Product Page
  • This uniquely configurable system consists of finger modules situated on either a parallel or radial gripper hub.
  • Modules can be mounted in arrays of one to five fingers in each position for adaptability offering an unmatched level of versatility and fulfilling a wide range of application requirements.
  • Additionally, each finger can be equipped with two switches to sense positions providing feedback to controls.
  • The system supports ISO 9409 mounting standards, mounting directly to most robots on the market.

Détails techniques

  • Nom de la marque
  • PHD
  • Catégorie
  • Compatible
  • Type d'accessoire
  • Pince
  • Robot correspondant
  • GP12, GP8, GP7, HC20DTP, HC10DTP, HC10DTP Classic
  • Application
  • Material Handling
  • Niveau d'intégration
  • Electrical, Mechanical
  • Region(s) Available
  • Europe
