HD - Hygienic Design Robots
Developed in collaboration with the Fraunhofer Institute for Manufacturing Engineering and Automation IPA for use in hygienic and cleanroom environments.
Cleanroom class ISO 4 / GMP A
FDA compliant materials
Washdown with H2O2
IP69k protection class
Special coating
-
FDA certified
-
Washdown and disinfection capability with: UV light, detergents, H2O2 (35 % Mist or 35 % Gas)
-
Excellent chemical resistance (Formalin 37 %, Ammoniac 25 %, Sulfuric acid 5 %, Phosphoric acid 30 %, Peracetic acid 15 %, Hydrochloric acid 5 %, Isopropanol 100 %, Sodium hydroxide 5 %,Sodium hypochlorite 5 %)
-
Antimicrobial additive
-
Roughness: Ra < 0.8
-
Evaluated according to different standards (ISO 6272-1, ISO 2812-1, ISO 2812-4, ISO 4628-1, ISO 4628-2, ISO 15184, ISO 2815, ISO 9227, ISO 6270-2, ISO 11507, T-Bend)

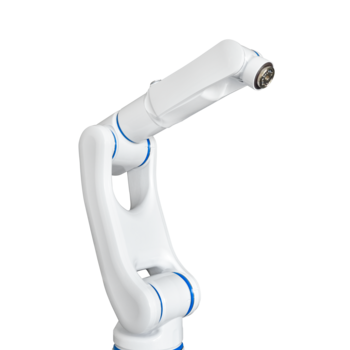

Designed to work in clean rooms

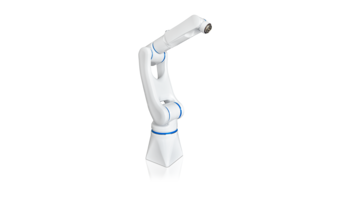

- ISO Cleanroom class 4 (HD7) & class 5 (HD8)
- Low particle emission
- Robot is rounded to maintain laminar air flow
- No horizontal surfaces where liquid or particles could accumulate
- FDA certified surface materials
- Food Grade Grease
- External battery box
Internal cable routing
-
Ethernet CAT6
-
8 pol signal cable
-
Two hoses for transport fluids
-
Air
-
Water
-
Various chemicals
-
Excellent cleanability
-
Screwless design
-
Selected and approved axle sealing design and material
-
Hygienically designed user connectors
-
Cleanable flange with O-ring groove
-
Robot connectors on the bottom
-
Reduced number of contact surfaces

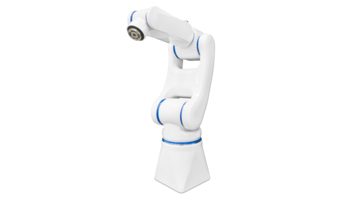

Two models for all your sensitive needs!
Design Overview

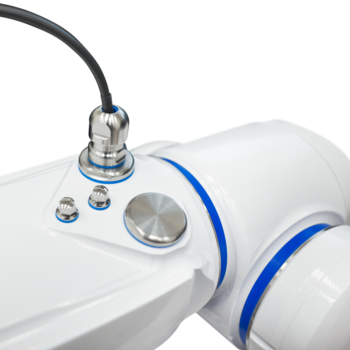

Media connectors

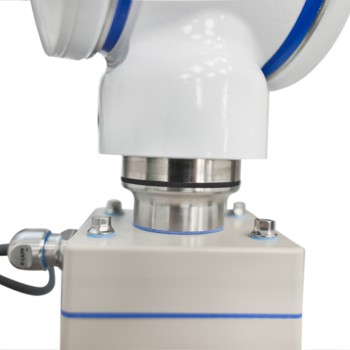

Robot connectors on the bottom

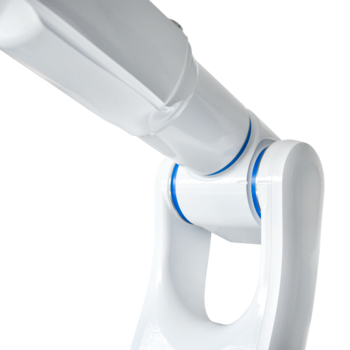

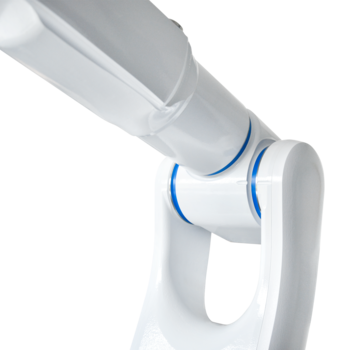

Hygienically designed axes
Screwless design

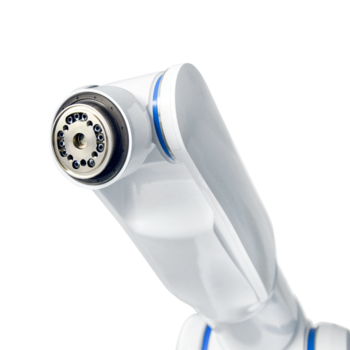

Hygienic flange with O-ring groove
